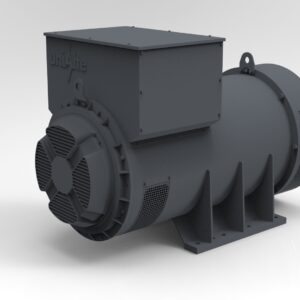

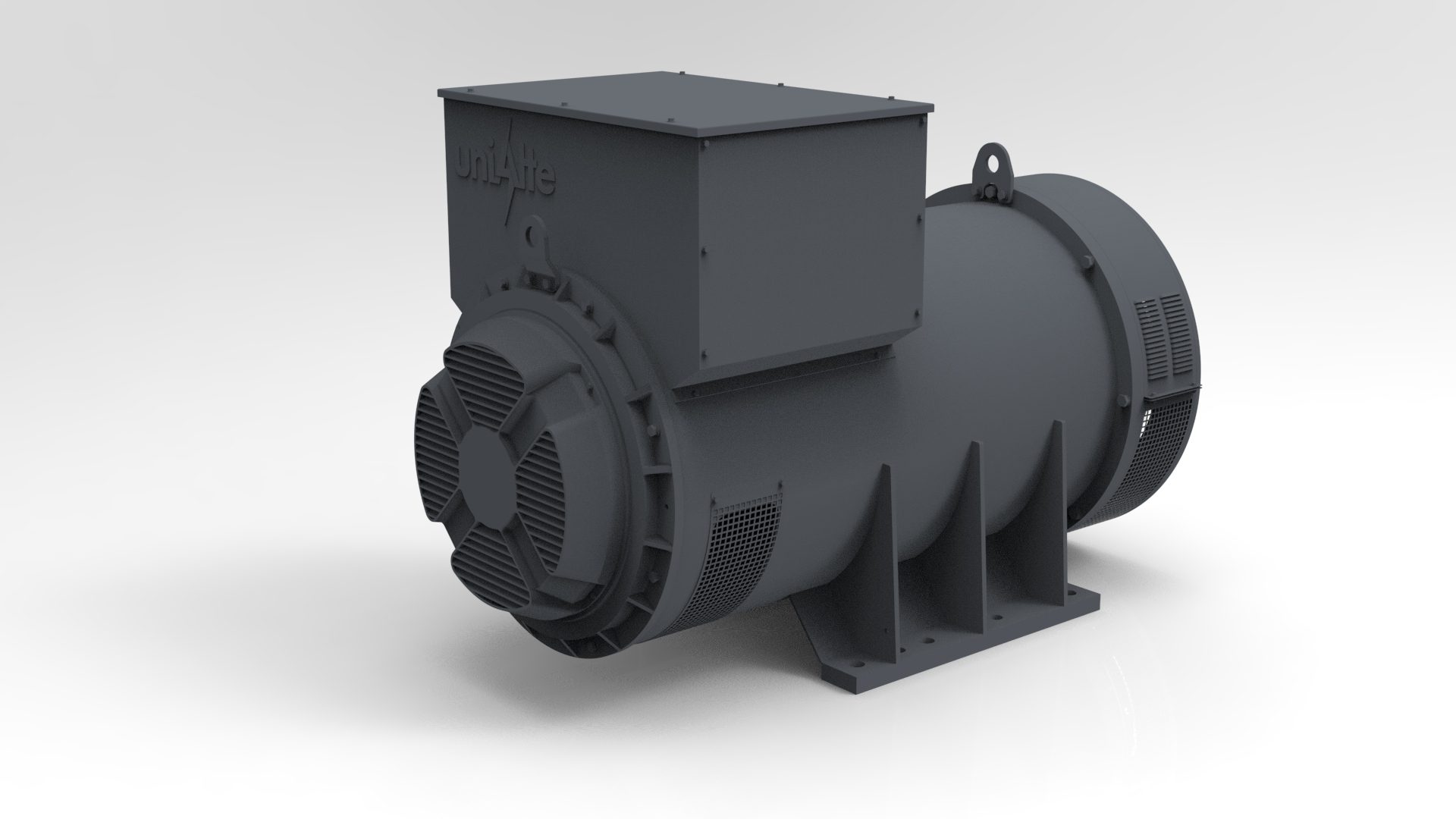

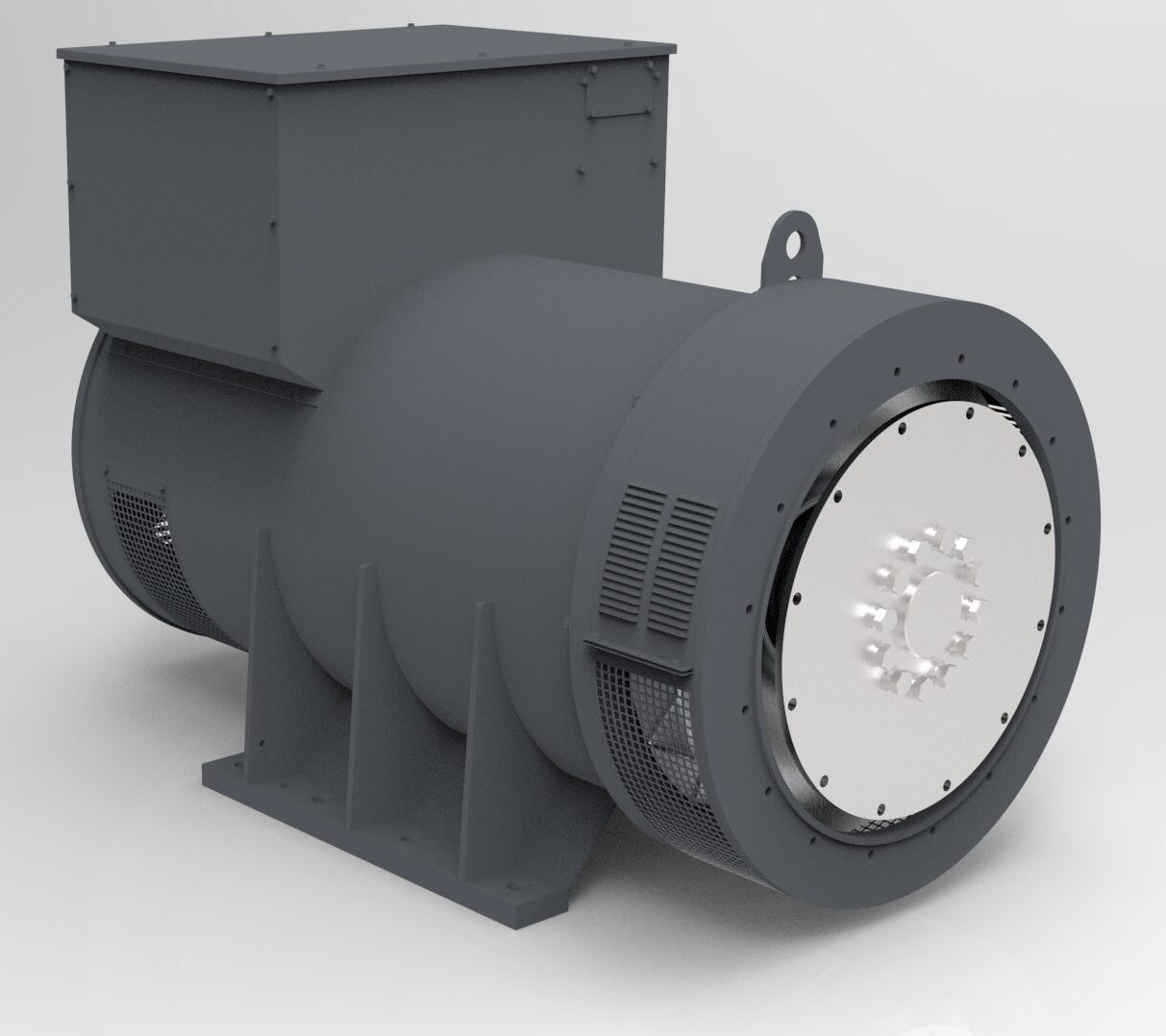

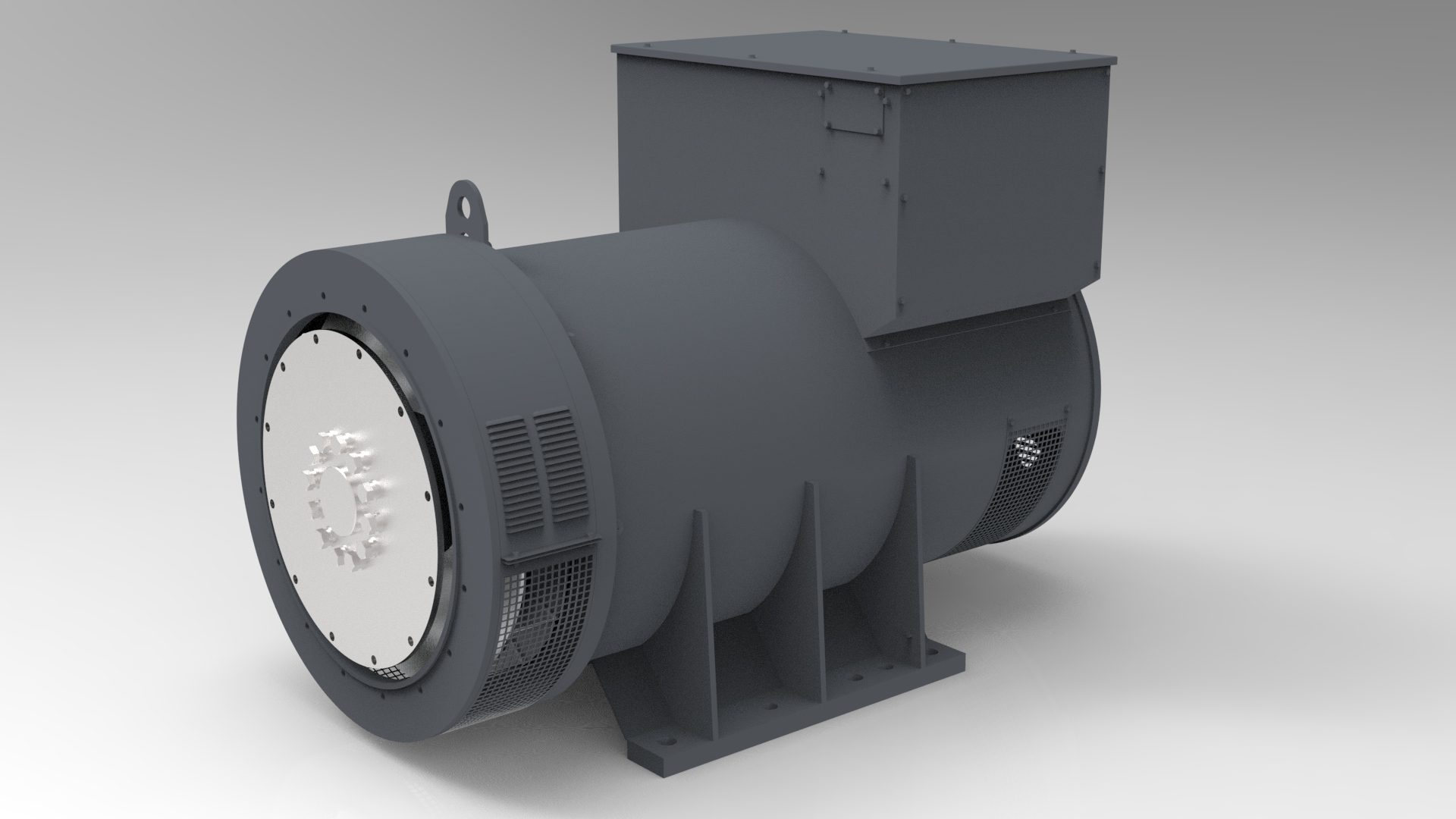

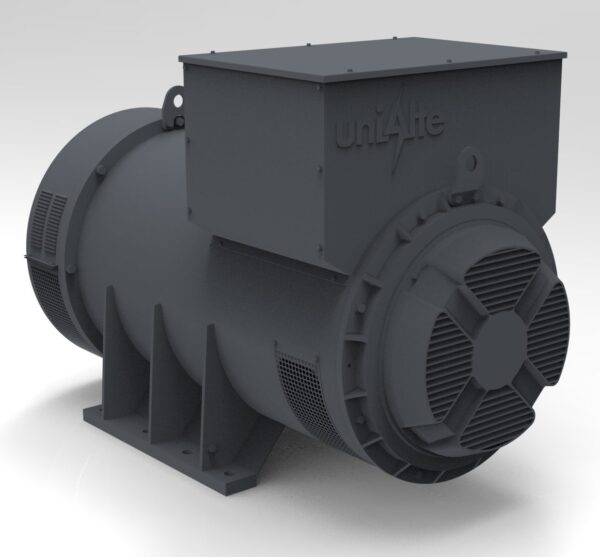

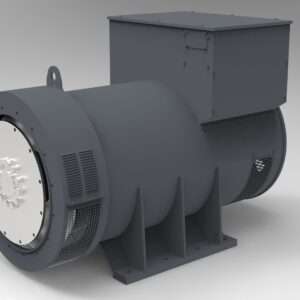

UNA537 Series Industrial Alternator
913/1800kVA，400/480V，50/60Hz，4/6Pole
The Unialte UNA537 Series Alternator is a reliable and high-performance solution designed to generate stable electricity across various applications, delivering maximum value to customers. With over 40 national patents, Unialte is recognized for its original, patented technologies and non-copy appearance.
Supporting both 400V and 480V generator systems, the UNA537 offers excellent energy conversion efficiency, an enhanced ventilation structure, and a user-friendly maintenance design—all of which contribute to lower operational costs and long-term performance.
Its short, shockproof structure allows for greater flexibility in installation scenarios. The addition of marine-grade varnish provides protection against moisture, mold, and fog, significantly extending the service life of this advanced single-phase alternator.
Description
Key Advantages:
- Compact Dimension Design
- Enhanced airflow and thermal dissipation
- Substantial cost savings
- Original & Distinctive Appearance
- High product identification
- Fully patented, 100% original — no copies
- Superior Environmental Protection
- Marine varnish coating for moisture, mold, and fog resistance
- Innovation-Backed Reliability
- 40 national design patents
- 3 exclusive appearance patents
- Power Range: 913/1800kVA
- Voltage Range: 400/480V
- Frequency: 50/60Hz
- Pole: 4/6
| Model: | B/C/D/E/F/G |
| 50Hz Continuous (kVA): | 913~1500 |
| 60Hz Continuous (kVA): | 1095~1800 |
| Winding Pitch: | 2/3 |
| Insulation Class: | H |
| Excitation System: | self-excitation |
| AVR: | ETC-2 |
| Options: | CT, PT |
| Space heater | |
| Excitation System: | self-excitation/PMG |
